- 25°/s
- ±75°/s
- 100°/s
- ±150°/s
- ±300°/s
- 573°/s
- ±900°/s
- 1 mV/(°/s)
- 3 mV/(°/s)
- 3.49 mV/(°/s)
- 6 mV/(°/s)
- 12 mV/(°/s)
- 20 mV/(°/s)
- 80 mV/(°/s)
- 10 Hz
- 25 Hz
- 30 Hz
- 160 Hz
- 0.08°/hr
- 10°/hr
- 12°/hr
- 0.5 %

3products found

CRS07 Gyroscope (unpackaged)

Ultra-small size
Excellent performance over temperature
Repeatable drift characteristic

Go to product Datasheet

CRS39A Gyroscope

Proven and robust silicon MEMS vibrating ring structure
FOG-like performance
DTG-like size and performance

Go to product Datasheet

CRM100 | CRM200 Gyroscope

Small (5.7 x 4.8 x 1.2mm)
Proven and robust silicon MEMS vibrating ring gyro
Low bias instability (12º/hr) over short integration period (<1s)

Go to product Datasheet

Can't find what you are looking for?

We offer Embedded Gyroscopes , but can also help you with a tailor-made gyroscope sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.

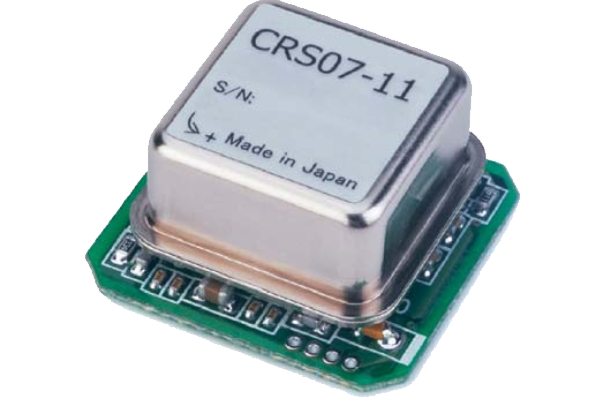

CRS07 Gyroscope (unpackaged)

Robust and affordable miniature gyroscope for applications in which space is critical

Measurement range ±100°/s, ±573°/s

Sensitivity 20mV/(°/s), 3.49mV/(°/s)

Bandwith 10 Hz (-3 dB), > 30 Hz (-3dB)

Non-Linearity <±0.5 %

Go to product Datasheet

CRS39A Gyroscope

Provides a optimum solution for applications where bias instability, angle random walk and low noise are of critical importance.

Measurement range 25°/s

Sensitivity 80 mV/(°/s)

Bandwith 25Hz ±10Hz (nom)

Scale Factor Non-Linearity ±0,05%

Go to product Datasheet

CRM100 | CRM200 Gyroscope

PinPoint® - precision navigation and pointing gyroscope

Measurement range ±75°/s, ±150°/s, ±300°/s, ±900°/s

Sensitivity 12mV/(º/s), 6mV/(º/s), 3mV/(º/s), 1mV/(º/s)

Bandwith up to 160Hz (-3dB)

Bias Instability 12°/hr

Go to product Datasheet
