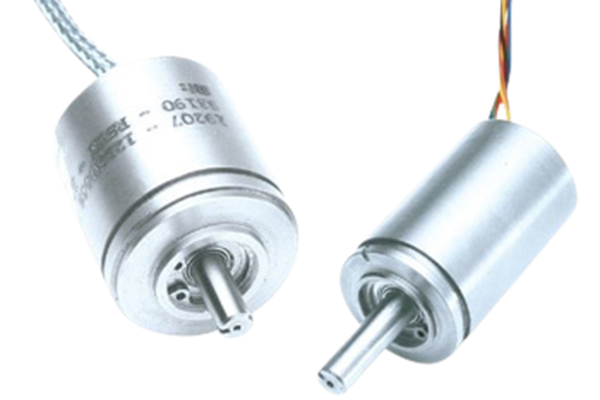

RVDT传感器
RVDT传感器(Rotary Variable Differential Transformer) are angular position sensors that work contactless.
![](http://www.leguiboud.com/media/21266/rsyn.png?anchor=center&mode=crop&width=600&height=400&quality=80&token=n4KA4E3fgr)
![R30D RVDT |传感器](http://www.leguiboud.com/media/21301/r30d-rvdt.png?anchor=center&mode=crop&width=150&height=100&quality=80&token=QjLkDa1NEI)

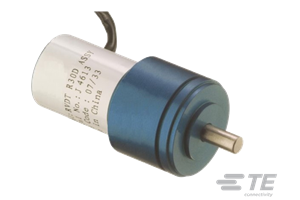

R30D RVDT
是直流操作的非连接旋转位置传感器
Measurement principle
RVDT
Measurement range
±30°,±40°,±60°
Accuracy
≤ ±0.25%
≤±0.5%
≤±2%
≤±0.5%
≤±2%
输出信号
±3.75 – ±7.5 VDC
![R30A RVDT| Althen Sensors](http://www.leguiboud.com/media/21297/r30a-rvdt.png?anchor=center&mode=crop&width=150&height=100&quality=80&token=IVSrfkyogT)

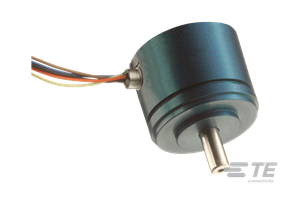

R30A RVDT
特殊形状的转子和伤口线圈以实现高可靠性和性能
Measurement principle
RVDT
Measurement range
±30°,±40°,±60°
Accuracy
≤ ±0.25%
≤±1%
≤±2%
≤±1%
≤±2%
输出信号
mV/V
![R36AS RVDT |传感器](http://www.leguiboud.com/media/21298/r36as-rvdt-drehwinkelgeber.png?anchor=center&mode=crop&width=150&height=100&quality=80&token=At3vX0PNDs)

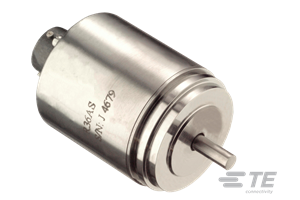

R36AS RVDT
独特的设计消除了随着时间推移降低的组件
Measurement principle
RVDT
Measurement range
±30°, ±45°, ±60°
Accuracy
≤±0.5%
≤±1%
≤ ±3%
≤±1%
≤ ±3%
输出信号
mV/V
![RSE RVDT |传感器](http://www.leguiboud.com/media/22665/rse.png?anchor=center&mode=crop&width=150&height=100&quality=80&token=xh%2bFMtGgsu)

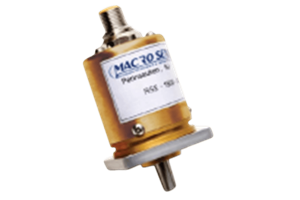

RSE RVDT
Ideal for measuring the position of quarter-turn valves, flue dampers, weir gates, mail sorters, conveyor check weighing systems, dancer arm tensioners, and a myriad of other applications involving fractional-turn shaft movements
Measurement principle
RVDT
Measurement range
0° to 120°
Accuracy
≤±0.1%
输出信号
0 - 10 VDC
![SX36RV120 RVDT| Althen Sensors](http://www.leguiboud.com/media/22666/sx36rv120.png?anchor=center&mode=crop&width=150&height=100&quality=80&token=lAJhkfimQC)

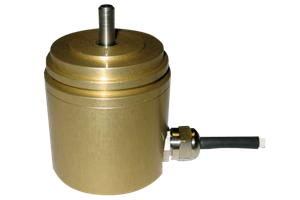

SX36RV120 RVDT
提供正弦信号,在测量范围内具有线性电压
Measurement principle
RVDT
Measurement range
±60°
Accuracy
≤±1.5%
输出信号
