DMS zum Messen auf Feinbeton, Putz oder Mauerwerk
Dehnungsmessstreifen zur Einbettung in die Messstelle beim Auftragen von Beton oder Mörtel.

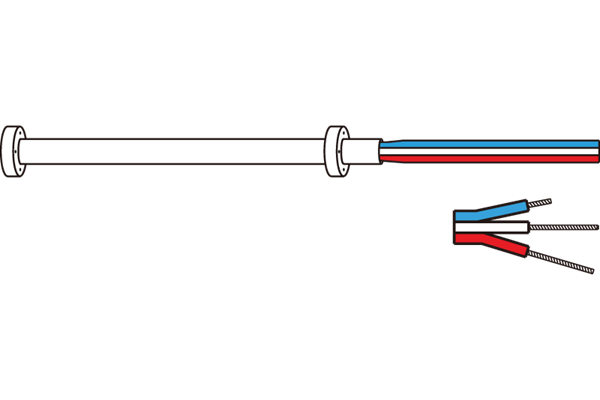

PML Series Strain Gauges for Long Term Measurement of Concrete Structure
For measurement of internal strain of concrete/mortar, element sealed into acrylic resin backing for waterproofing (60, 120mm gauge length)
Amount of elements
Single element
Strain limit
2%
Resistance value
120Ω
Material to use on
Concrete
Mortar
Mortar
PMFL Series Strain Gauges for Long Term Measurement of Concrete Structure
Designed for the measurement of internal strain of concrete or mortar under loading test (50, 60mm gauge length)
Amount of elements
Single element
Strain limit
2%
Resistance value
120Ω
Material to use on
Concrete
Mortar
Mortar
PMFL-T Series Strain Gauges for Long Term Measurement of Concrete Structure
Measurement of both strain and temperature with the integrated temperature sensor
Amount of elements
Single element
Strain limit
2%
Resistance value
120Ω
Material to use on
Concrete
Mortar
Mortar
PMFLS Series Strain Gauges for Long Term Measurement in Asphalt
Embedded in asphalt for strain measurement in loading test such as rolling compaction
Amount of elements
Single element
Strain limit
2%
Resistance value
120Ω
Material to use on
Asphalt
